CCL(Copper Clad Laminate)

5G / 6G Electrical Evaluation

Electrical properties including dielectric constant (Dk), dissipation factor (Df), and signal integrity (SI) are evaluated.

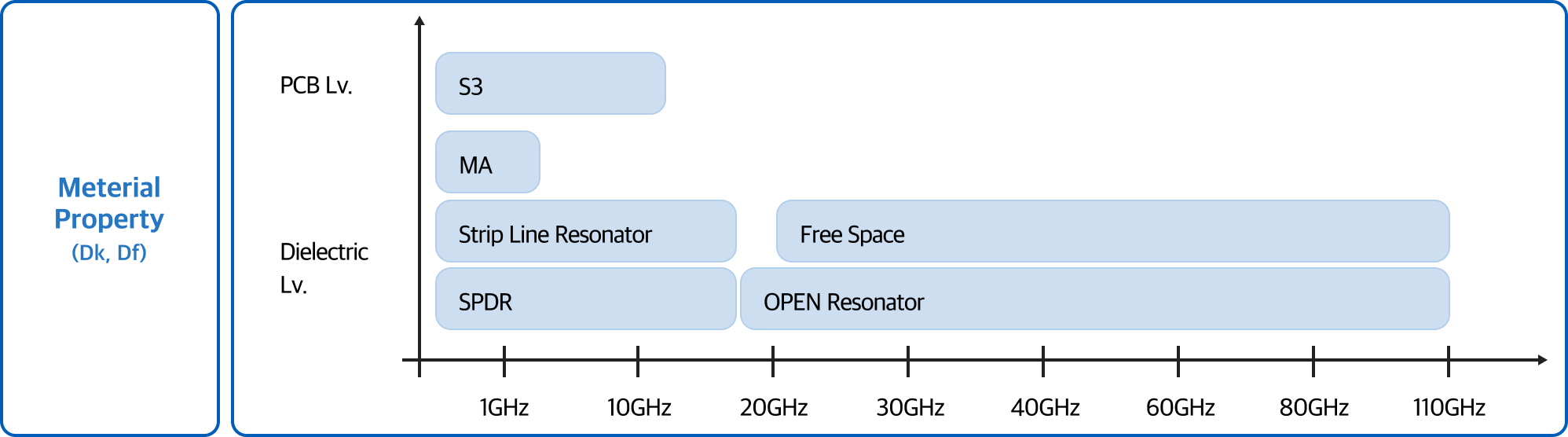

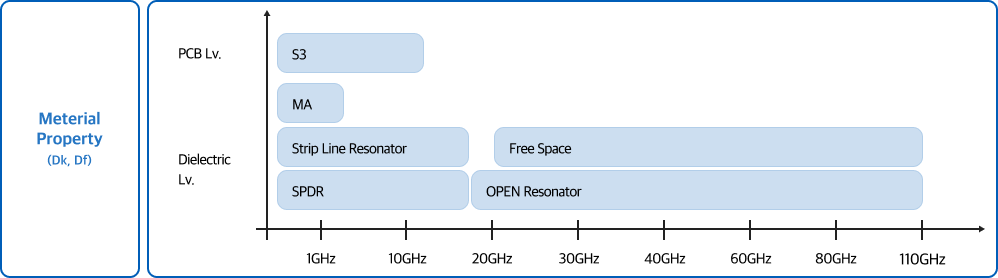

Material Property (Dk, Df)

Measurement method Measurement bandwidth
Dielectric Lv. Material Analyzer 1 GHz
SPDR 1 ~ 20 GHz
Strip Line Resonator 15 GHz
Free Space 20 ~ 110 GHz
Open Resonator 18 ~ 110 GHz
PCB Lv. S3 10 GHz
Ring Resonator 20 ~ 110 GHz

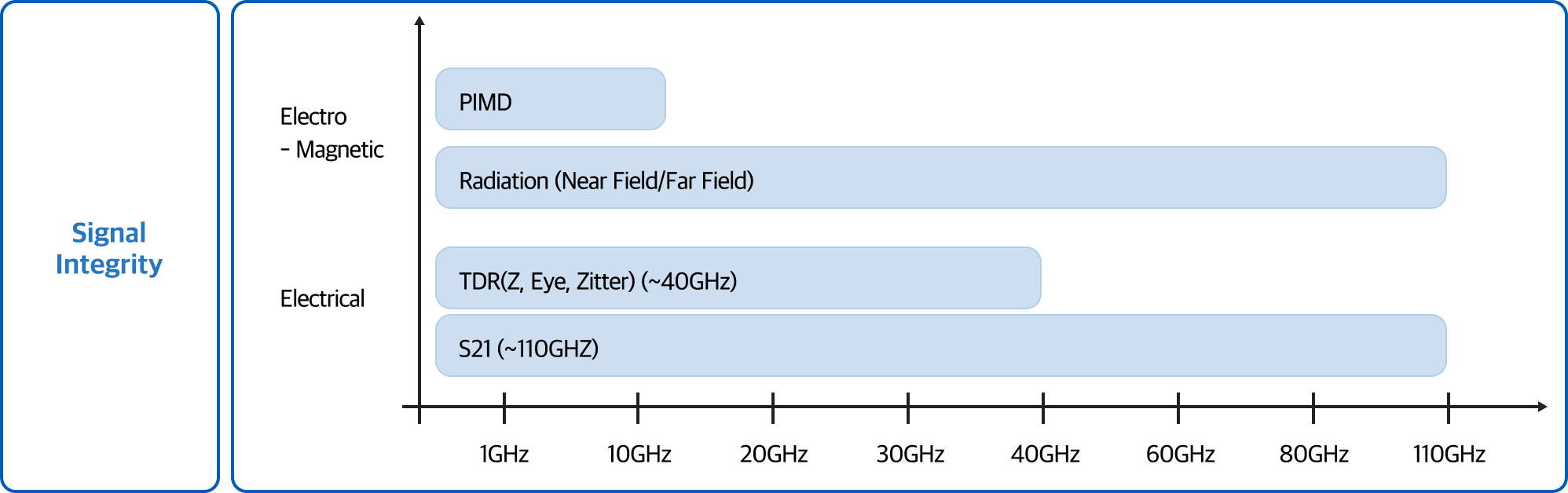

Signal Integrity

Measurement method Measurement bandwidth
PIMD 2 GHz
Radiation ~ 110 GHz
TDR ~ 40 GHz
S21 ~ 110 GHz
